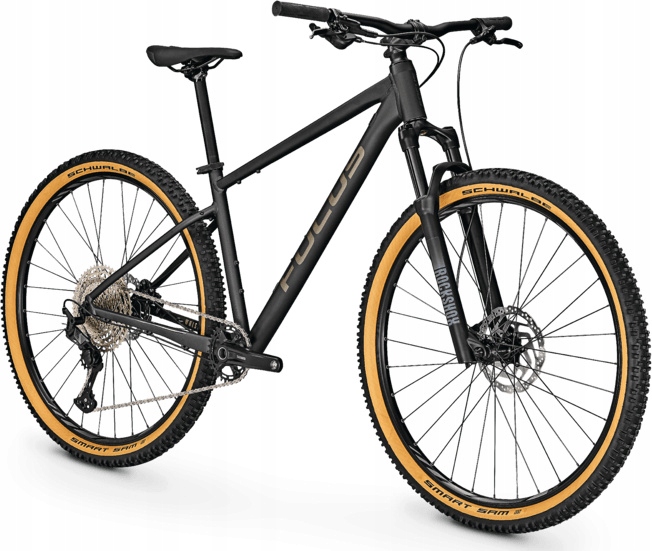

Rower Focus Whistler 3.9 S XS 34cm 27,5 Black

SPECIFICATION

FRAME MATERIAL

Aluminium

FRAME

6061 aluminium, 3D forging, disc, internal cable routing, post mount 160 mm

FORK

SR Suntour Epixon 9 Air LOR, 9x100 mm

TRAVEL FORK

100 mm

SHIFTER

Shimano Deore M6100, 12-speed

REAR DERAILLEUR

Shimano SLX M7100, 12-speed

SPROCKET

Shimano Deore M6100, 12-speed

CHAIN

Shimano Deore CN-M6100, 12-speed

CRANKSET

Shimano Deore FC-M6100, 12-speed

BOTTOM BRACKET

BSA

TRANSMISSION OF DRIVE

front: 32, rear: 10-51

HANDLEBAR

Riser, Aluminium, 720mm

STEM

Aluminium, 31,8 mm, 6°

HEADSET

VP Components 1-1/8", ZS44/28,6-ZS44/30 Ahead

SADDLE

VELO VL3378

SEATPOST

Alloy, 27,2 mm

BRAKES

Shimano MT200, hydraulic disc brake

BRAKE LEVER

Shimano MT200

BRAKE

Disc

RIMS

RODI Viper 21, 21-622

REAR HUB

Shimano TC500 MS, QR, 5x100 mm

FRONT HUB

Shimano HB-TX505, QR, 5x100 mm

TIRES

Schwalbe Smart Sam 2.25, 57-622

GEARS

12

BIKE WEIGHT INCL. BATTERY IN KG.

13,40 kg

SIZE

38,46,50,42,34

GEOMETRY

XS

S

M

L

XL

SIZE

34

38

42

46

50

SIZE (MM)

340

360

420

460

500

HANDLEBAR WIDTH

720

720

720

720

720

STEM LENGTH (MM)

60

60

60

60

60

CRANKARM LENGTH

170

170

170

170

170

SEAT POST LENGTH (MM)

350

350

350

350

350

A

SEAT TUBE LENGTH (MM)

340

360

420

460

500

B

EFFECTIVE TOP TUBE (MM)

549

574

606

636

666

C

HEAD TUBE ANGLE (°)

68

68

68

68

68

D

EFFECTIVE SEAT TUBE ANGLE (°)

74

74

74

74

74

E

CHAINSTAY LENGTH (MM)

440

400

450

450

450

F

BOTTOM BRACKET DROP (MM)

48

48

60

60

60

G

HEAD TUBE LENGTH (MM)

120

120

120

140

160

H

FORK CONSTRUCTION HEIGHT (MM)

497

497

515

515

515

I

PRE-RAKED FORK (MM)

42

42

51

51

51

J

WHEELBASE LENGTH (MM)

1079

1104

1155

1187

1220

K

STACK (MM)

605

605

630

649

667

L

REACH (MM)

375

400

425

450

475
